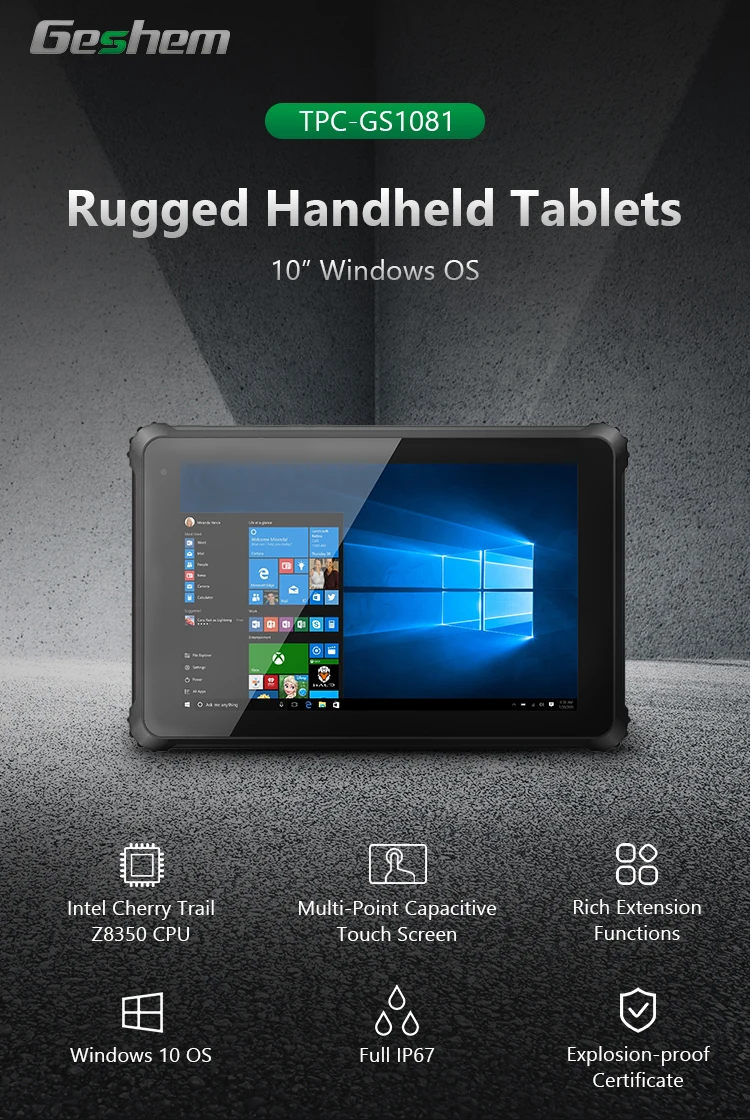

CPU

Intel Cherry Trail Z8350 1.44GHz~1.92GHz

OS

Windows 10 home or Pro OS

RAM

4GB

ROM

64GB

WIFI

WIFI 802.11(a/bg/n/ac) Dual Frequency: 2.4G+5.8G

BT

BT 4.0 (BLE) class1 Transmission distance:10m

GPS

U-blox M8N,GPS+GLONASS

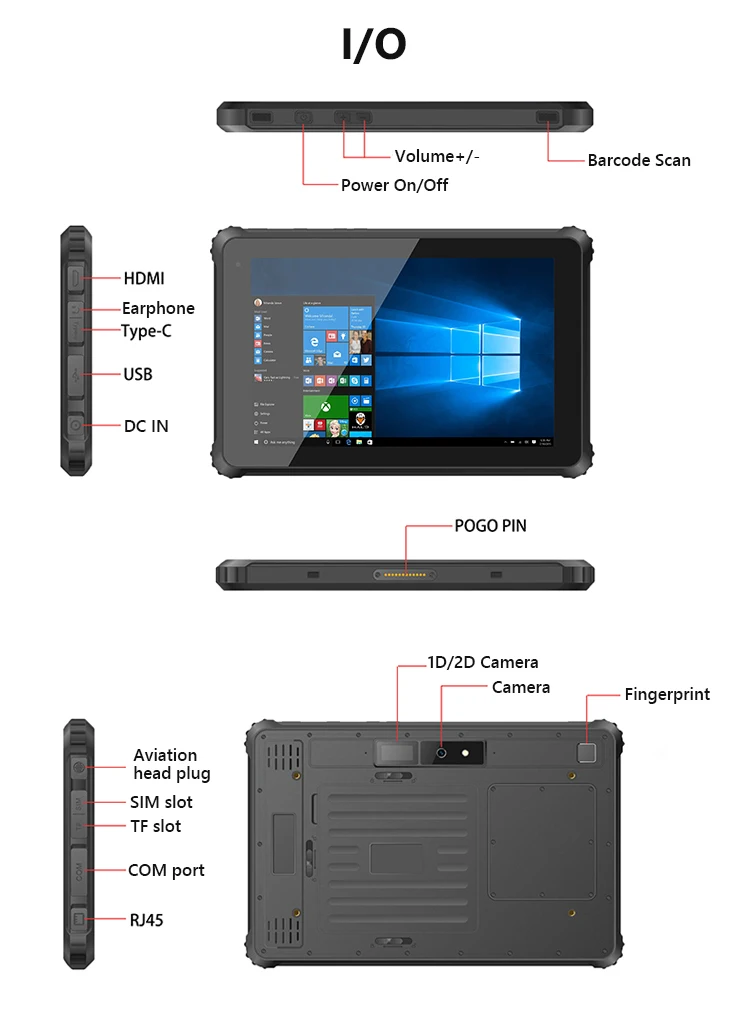

POGO PIN

1*12pin USB+Charging

Type C

1*USB OTG+charging

Type A

1*USB2.0

Ethernet

1*RJ45 1000M Ethernet port

COM port

1xRS232

MINI HDMI

1*Mini HDMI

DC Jack

1*DC Jack

Earphone

1*Standard 3.5mm headphone

TF Card Slot

1*TF card slot, max up to 256G

SIM Card Slot

1*SIM card slot

Aviation plug

Support 1x Aviation plug

Resolution

800*1280,10 inch IPS LCD,16：10 vertical, MIPI connection

Brightness

500cd/㎡; 1000cd/㎡ optional

Sunlight readable

Optional

NFC

NXP MSN35 NFC module,I²C Port,13.56MHZ, Support 14443A/14443B/15693 Protocol

1D

Zebra SE655 TTL, SE655E100R Optical resolution: 5mil scanning speed: 50 times/s

2D

Zebra, SE4710, software decoding///Honeywell, N3680 USB, hardware decoding Optical resolution:5mil Scanning speed:50times/s distance: 30cm

Size

274*181*23mm

Weight

1.15KG/1.5KG(NW/GW)

Color

Black, other color optional with MOQ

Power adapter

5V/3A, 6th level energy efficiency DC Port adapter

Hand strap

Support, standard package

OTG cable

Type C OTG cable

Docking

Office and vehicle docking with DC*1/ DB9*1/ RJ45*1/ USB2.0*2/ POGO PIN*1 Optional

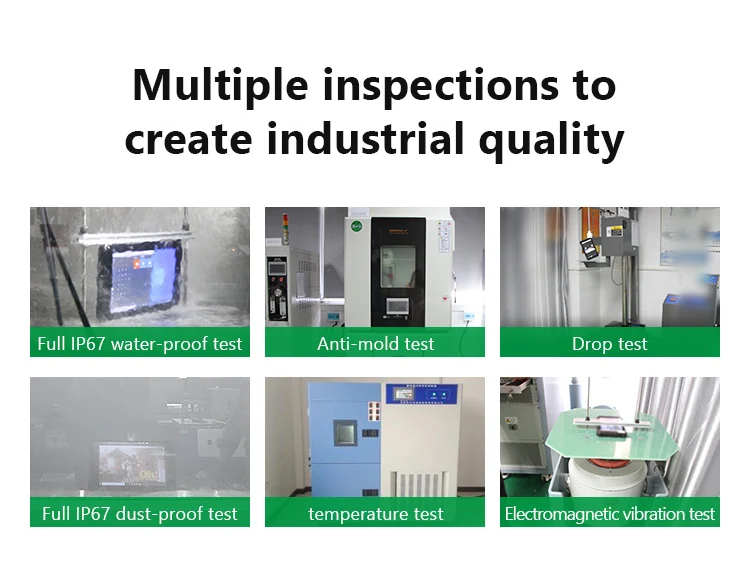

Certificates

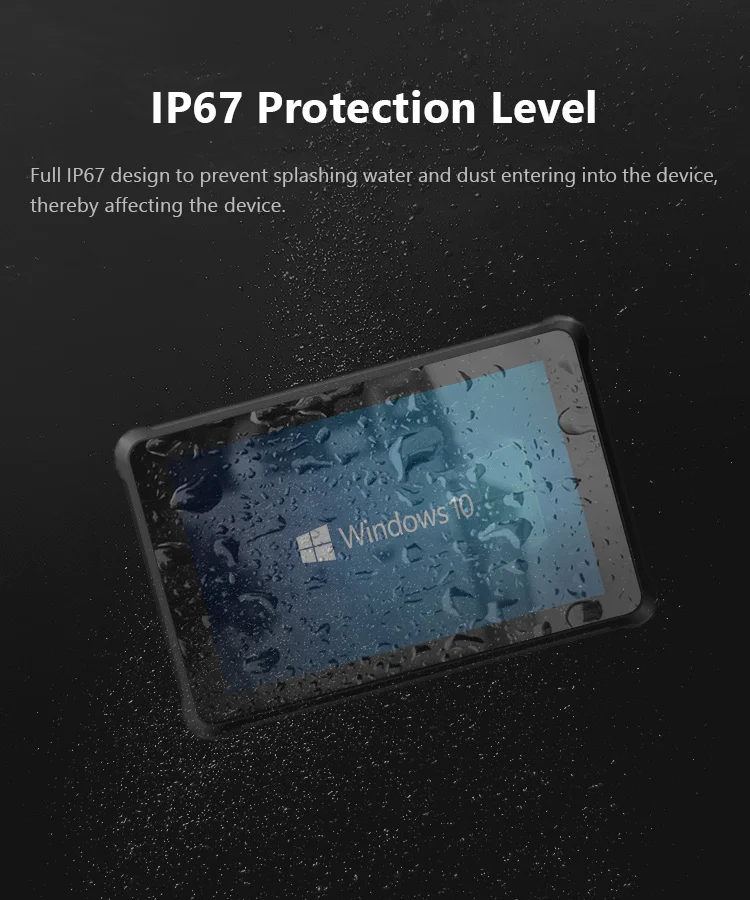

CE/RoHs/IP67/MSDS/UN38.3
